ALLBEST WA-Series 1500W 2000W 3000W Platform welding machine ALLBEST LASER platform automatic laser welding machine, equipped with an XYZ axis in a large working area, enables precise positioning and flexibility for various workpieces, which is an ideal solution for automated, accurate, flexible, and efficient laser welding. ALLBEST LASER automatic laser welding machine integrates with automation systems and ensures high speed, adaptability, and a streamlined production process.
1.High Precision：Automatic platform laser welding machines offer exceptional precision in welding operations. The laser beam allows precise control over the heat input, resulting in accurate and consistent welds. This is particularly beneficial for applications that require tight tolerances and intricate welds.
2.Speed And Efficiency：Laser welding is faster than traditional welding methods. Platform laser welding machines can perform rapid and continuous welding, significantly reducing cycle times and increasing production efficiency. This speed advantage translates to higher throughput and reduced production costs.
3.Versatility：Platform automatic laser welders are highly versatile and can handle various materials. Including metals and alloys. They can easily weld different thicknesses and combinations of materials. This makes them suitable for diverse applications across automotive, aerospace, electronics, and more industries.
4.Minimal Heat Affected Zone (HAZ)：Laser welding generates a concentrated, localized heat source. It results in a minimal heat-affected zone (HAZ) around the weld area. This reduces the risk of material distortion, preserving the surrounding material’s mechanical properties.
5.Weld Quality And Consistency：Laser welding offers excellent weld quality with high joint strength and integrity. Platform automatic laser welding machines ensure consistent welds throughout production, eliminating variations commonly associated with manual welding. This leads to improved product quality, reduced rework, and enhanced reliability.
Repeatable welds on small-to-medium parts: The AT-WA XYZ platform holds the workpiece and repeats the same path, so brackets, boxes and fixtures come out consistent from the first piece to the last. This is for automated platform welding, not handheld repair work.

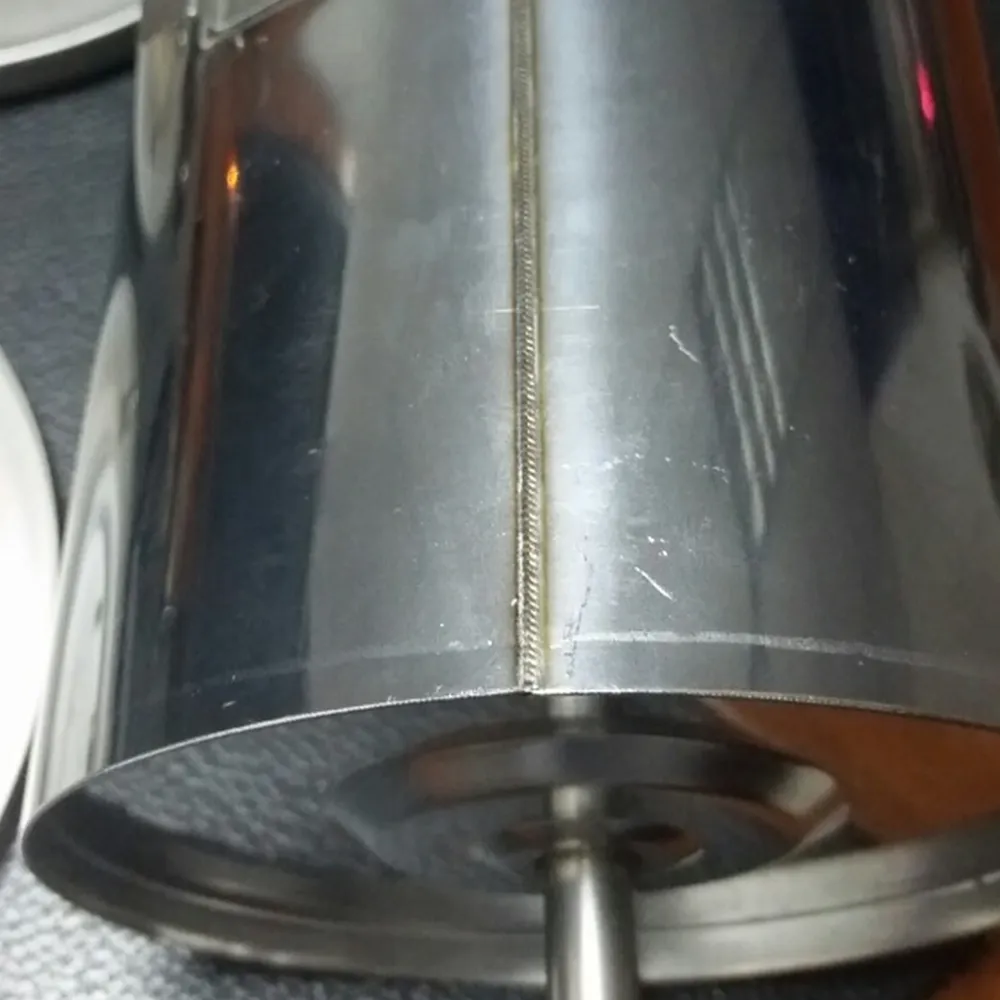

Tight heat input for stainless and thin sheet: 1500W / 2000W / 3000W fiber welding keeps a small heat-affected zone, which helps limit warping on stainless kitchenware, cabinets and decorative parts that would distort with MIG/TIG.
Fixtured production instead of operator skill: Once the jig and program are set, the platform runs the weld while the operator loads parts. That cuts dependence on a highly skilled welder for repeating seams.
Ready to cell with other ALLBEST processes: Typical line is laser-cut blanks (AT sheet/tube) → AT-WA platform weld → AT press-brake form. Ask ALLBEST for a sample weld on your alloy before you lock the power.
| Model | AT-1500WA | AT-2000WA | AT-3000WA |
|---|---|---|---|
| Laser Power (W) | 1500 | 2000 | 3000 |
| Working Area (mm) | 1336 × 1030 × 1600 | ||
| Machine Weight | 380 kg | ||
| Working Voltage | AC 220V 50/60Hz | AC 220V 50/60Hz | AC 380V 50/60Hz |
| Laser Wave Length | 1080 nm | ||
| Laser Source | MAX / Raycus | ||
| Linear Module | X: 800 Y: 400 Z: 300 | ||
| Servo Motor | 400W × 2 + 400W holding brake | ||
| Welding Head | WSX ND15 | ||

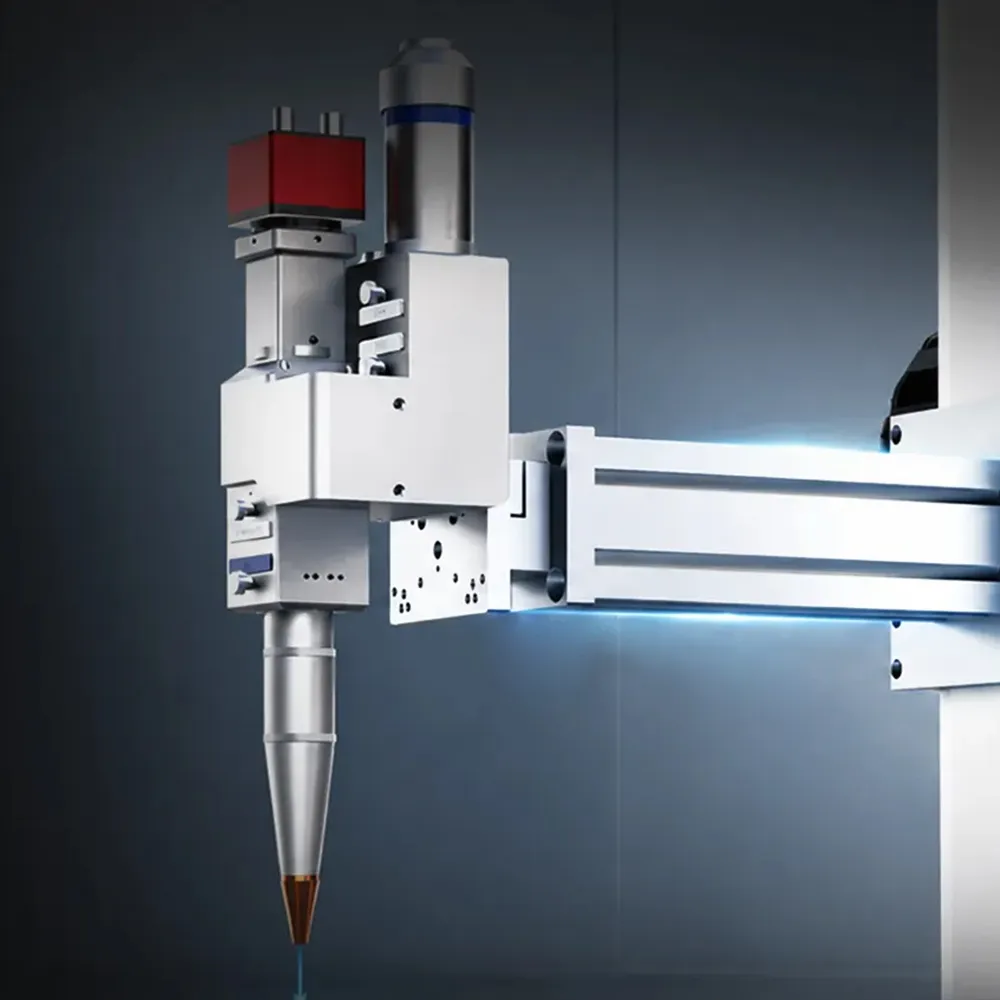

Its robust linear guide and stabilized arm ensure smooth,vibration-free movement, while the integrated laser head enables consistent, clean welds on small to medium components.
The Desktop Automatic Laser Welding Machine features three screens: a CCD display for real-time monitoring, a welding control screen for precise power management, and a locating system for accurate part positioning. Together, they ensure every weld is fast, precise, and repeatable.
Featuring a polished, vibration-free worktable, this desktop laser welding machine delivers precise, repeatable welds for small tomedium components, combining high accuracy with efficient operation.
The Desktop Automatic Laser Welding Machine performs precise,single-step welds, reducing heat distortion and delivering consistent, high-quality results.
The AT-WA is ALLBEST LASER’s desktop automatic platform welder with an XYZ axis. It is for repeatable, automated welds on small to medium metal parts, not a handheld torch and not a cutting machine.
ALLBEST offers AT-1500WA (1500W), AT-2000WA (2000W) and AT-3000WA (3000W). Use higher power for thicker or more reflective metals such as copper. Confirm the thickness with ALLBEST before ordering.

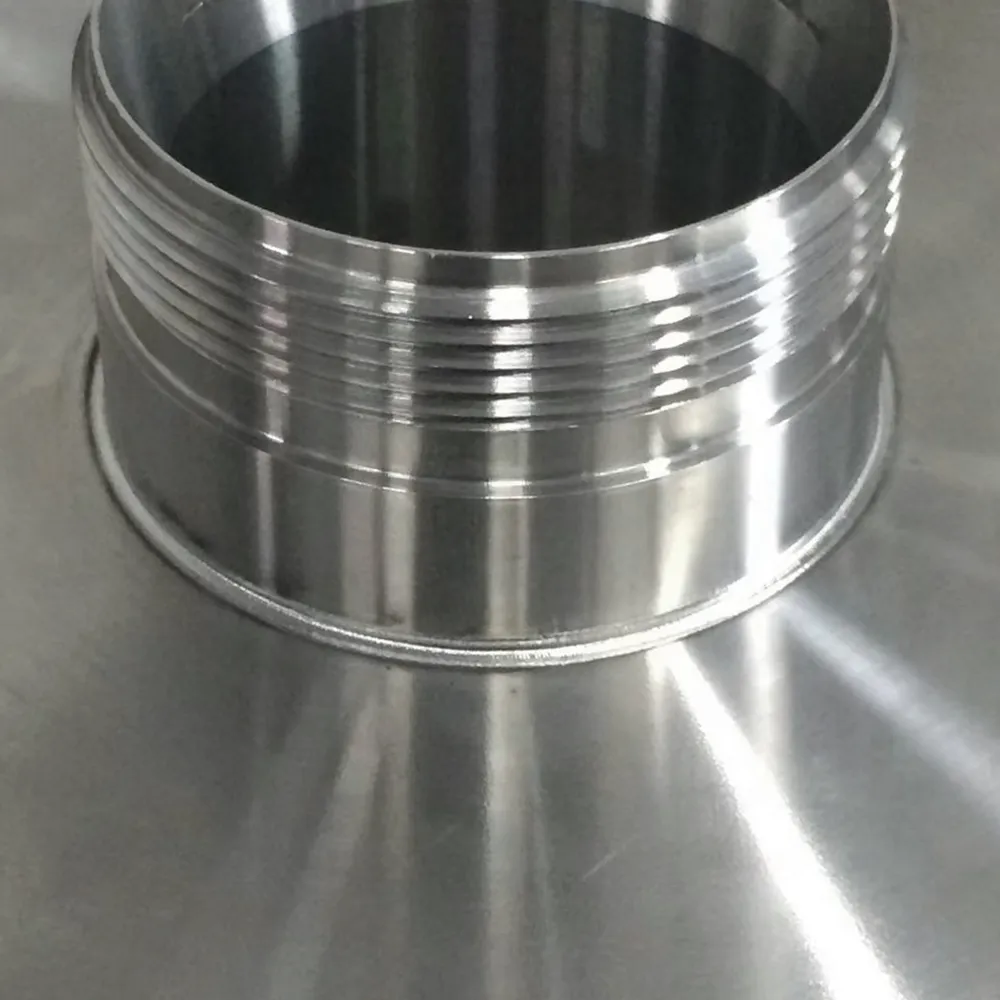

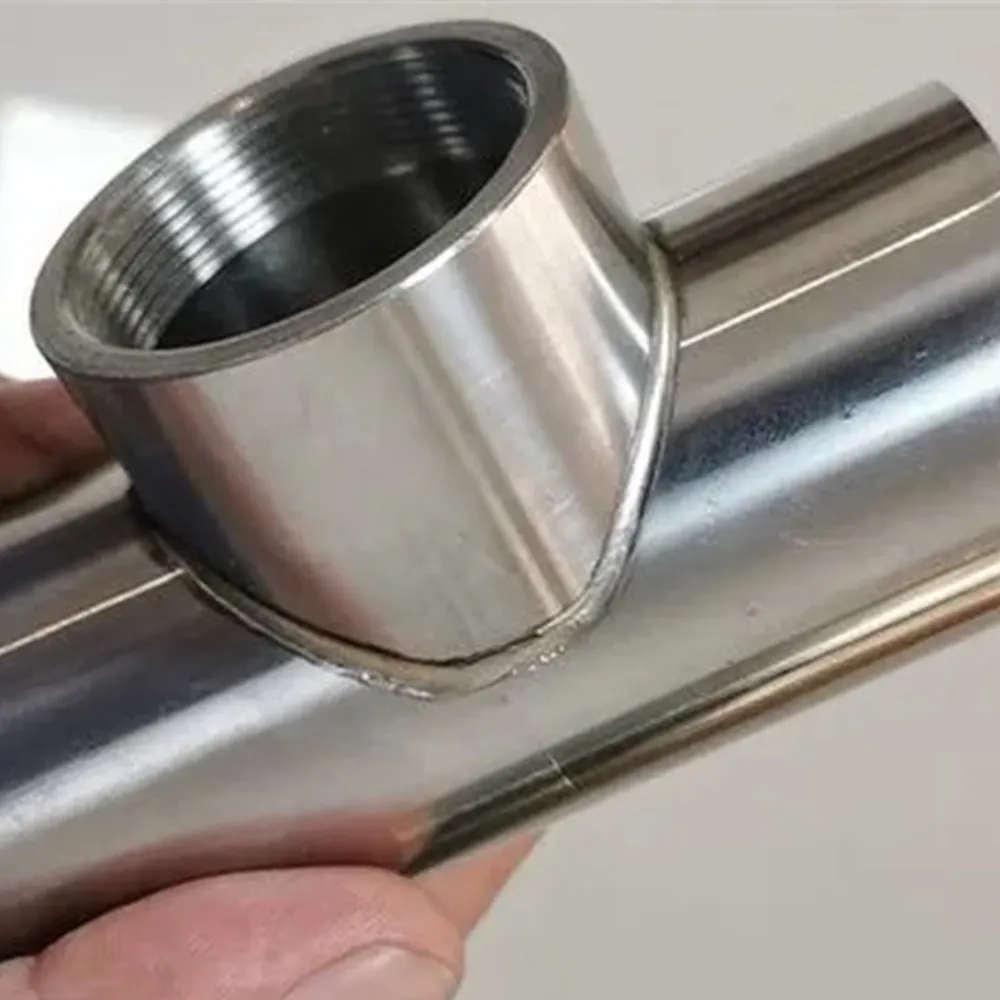

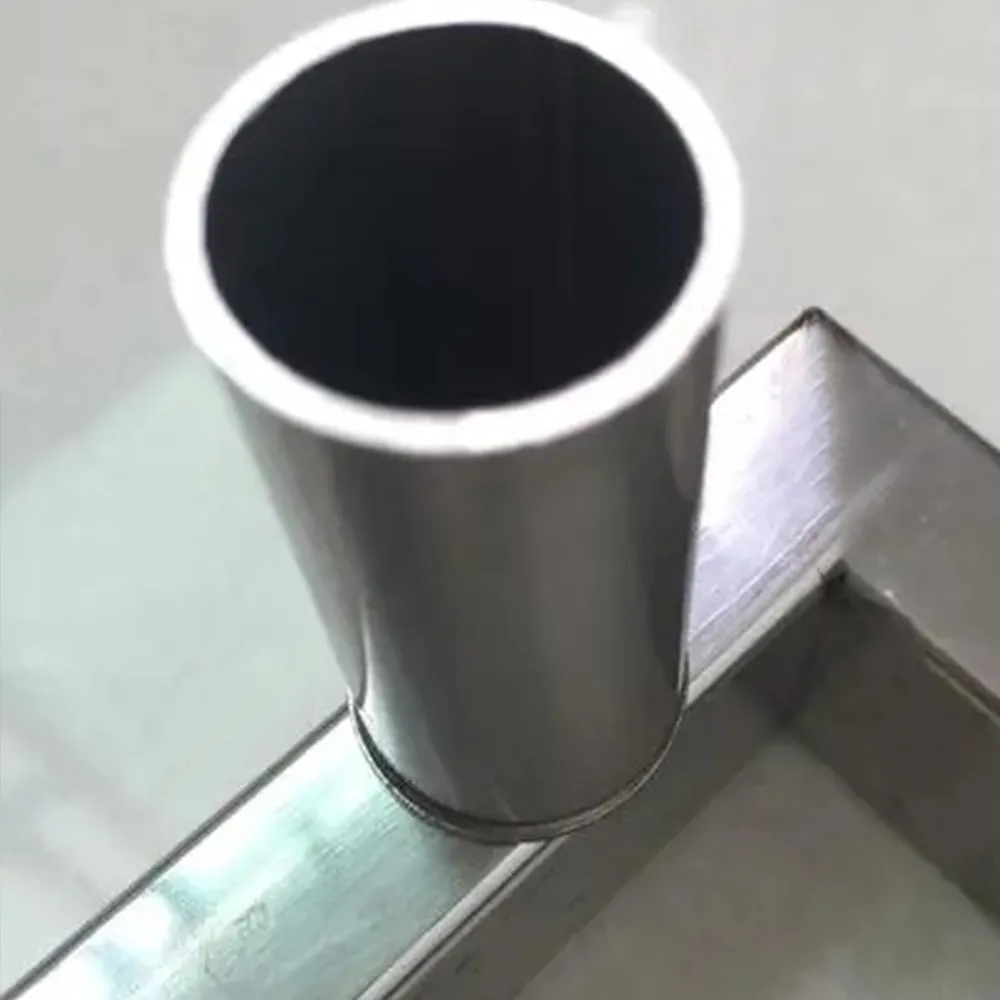

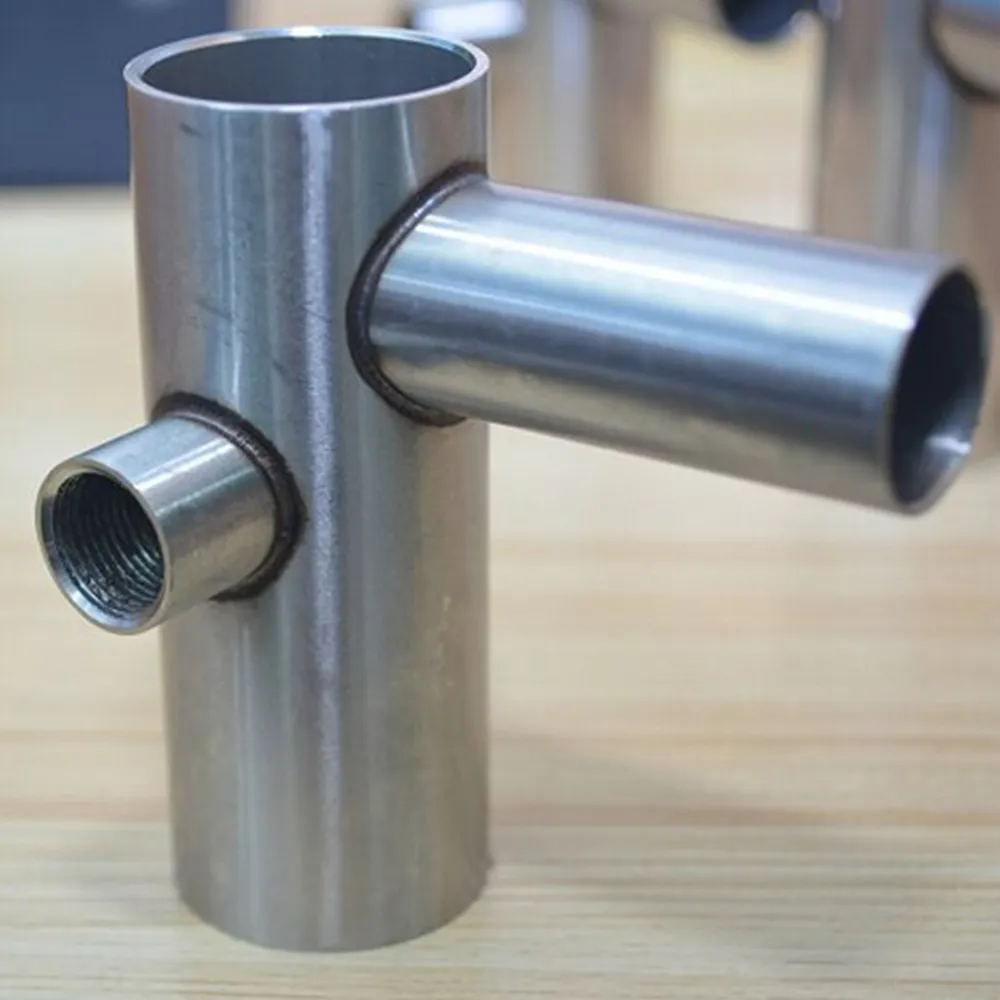

Fiber platform welding is commonly used on carbon steel, stainless steel, aluminum and other metals. Fixture design and power choice matter more than with a handheld welder. Ask ALLBEST for a sample-weld if the alloy is new to you.
